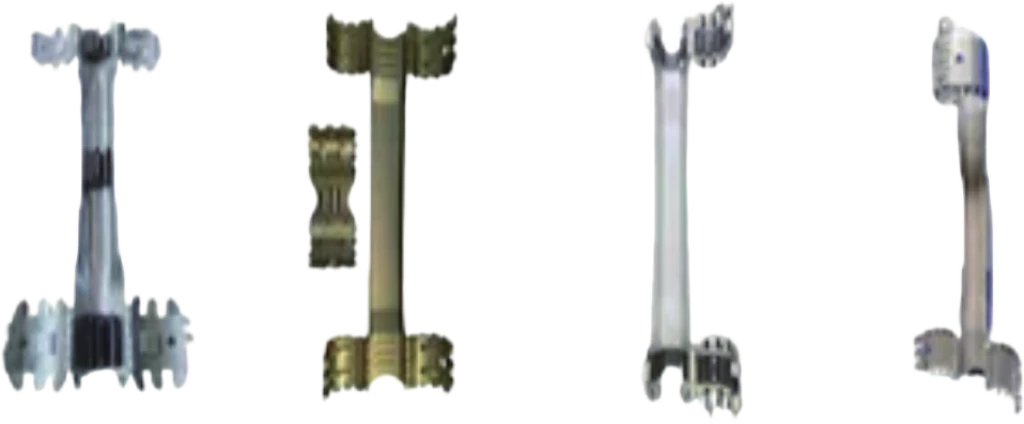

Cable Protectors

← All products

Overview

Cable damage during run-in-hole is a leading cause of early ESP failure. Fiastar cable protectors shield the power cable and splices from mechanical damage as the string is deployed.

Key features

• ✓ Shield power cable and splices during deployment
• ✓ Rugged design for run-in-hole mechanical loads
• ✓ Secure fit across a range of tubing and casing sizes
• ✓ Corrosion-resistant material options

Typical applications

Technical specifications

Tubing sizes	2-3/8" – 5-1/2" OD
Cable types	Round, flat, tandem (power + instrument)
Protector types	Cross-coupling, mid-joint, banded, snap-lock
Materials	Ductile iron, carbon steel, 13Cr, Inconel 825
Fasteners	Carbon steel, B7, Inconel 718 (sour service)
Casing compatibility	5-1/2" – 9-5/8"
Operating temperature	Up to 230 °C with HT elastomer inserts
Standards	Designed to API RP 11S5 installation practices
